Recommended Actions Integration

For use cases where Champion would need to interact with the client application.

Table of Contents

• Steps
• Sequence Diagram
• Code Examples

Steps

If the use case requires it, Champion can recommend actions to take within the Client application. For example, Champion might suggest navigating to a specific page or selecting a component of the Client application. The possibilities are endless, as long as the Client application supports them.

1. Action Determination: Identify what actions the client application can support, such as navigation, element selection, or filter creation.
2. Define actions: Specify these actions in the agent response so the agent can recommend them.
3. Implementation: Implements the defined actions within the client application. The response will always contains an actionType and a payload.

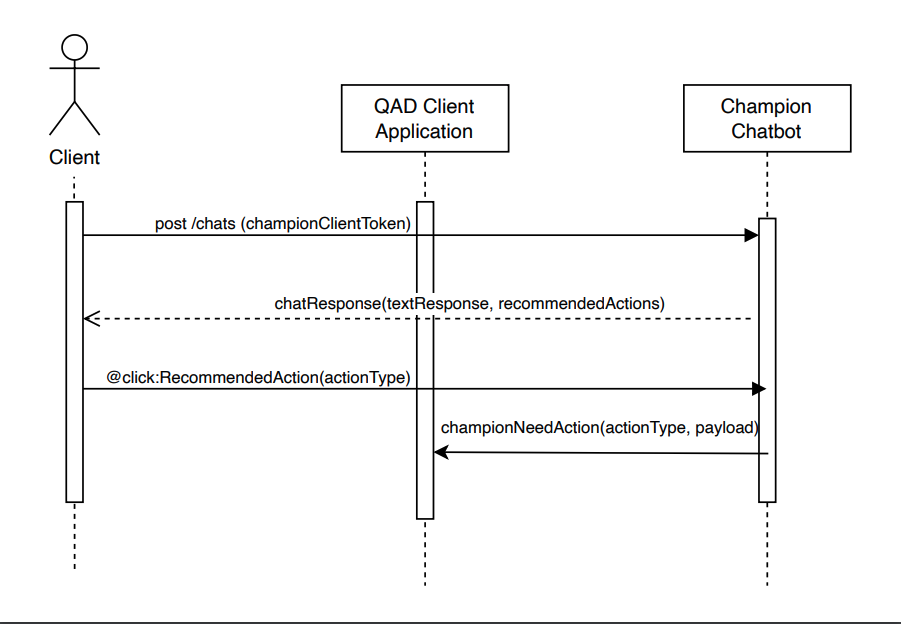

Sequence Diagram

Code Examples

Define the ChampionActionType in the champion initialization script:

enum ChampionActionType {
  NAVIGATION = 'NAVIGATION',
  ...
}

Implement the championNeedAction method in the champion initialization script:

window.championNeedAction = (type: ChampionActionType, payload: any) => {
  if (type === ChampionActionType.NAVIGATION) {
    router.push('/home-page' + payload.url)
  }
  ...
}
